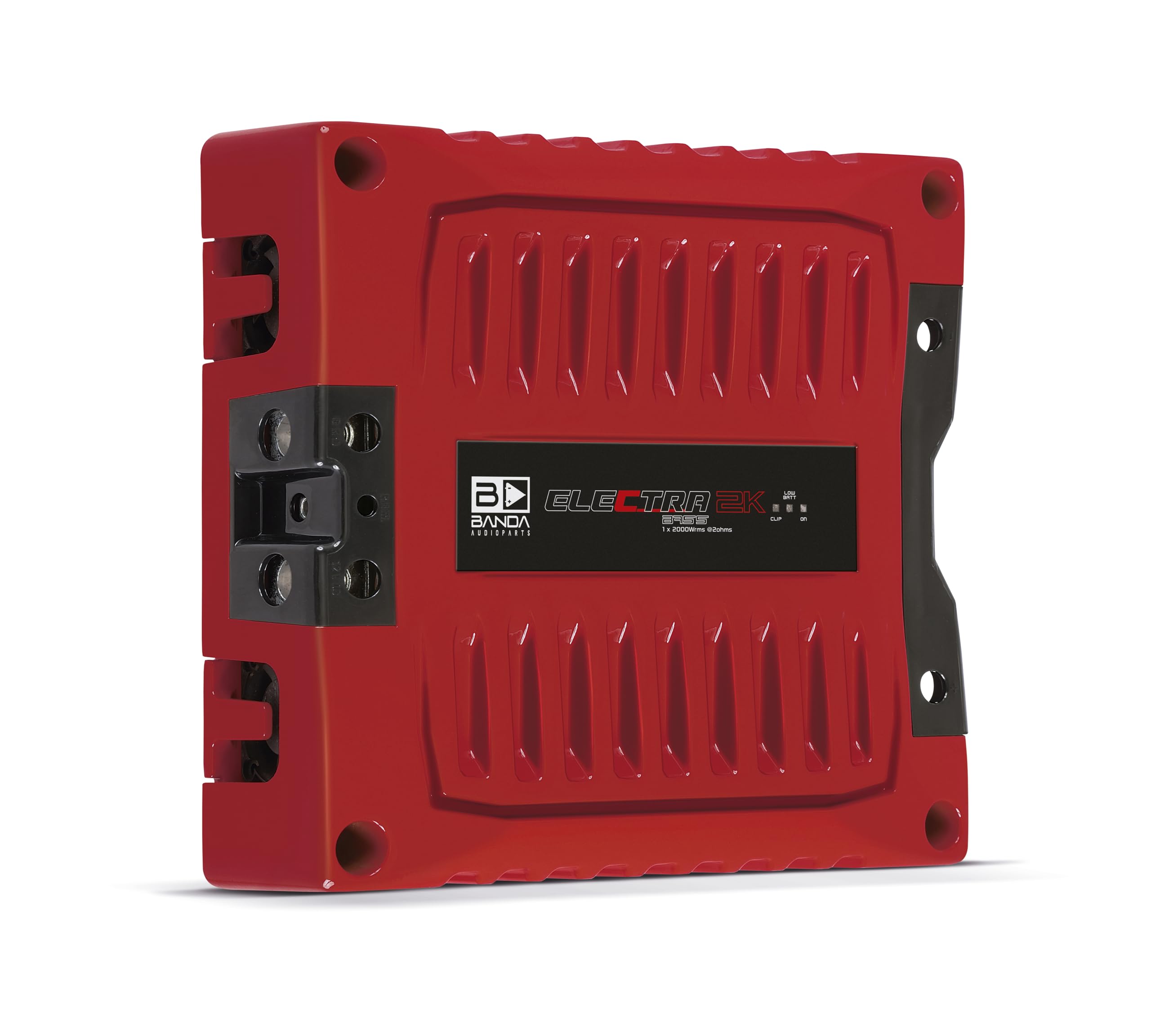

BANDA 2K2OHMRED One Channel 2000 Watts Max @ 2 Ohms Car Audio Amplifier w/Bass Boost High Pass Filter and Low Pass Filter. Use 21mm / 4 AWG power cables for both GND and +12Vdc. Do not use an impedance load lower than the amplifier specification. This can damage the equipment. Use wire solder for tinning the cable end for better electrical contact. Loose electrical connection can cause malfunction, heating and even fire. The GND connection must be as short as possible, using an adequate wire terminal firmly connected to a clean, paint free spot at the car chassis. If more than one amplifier is used, provide adequate individual wiring for each one. If using a power supply to power the amplifier, it must be capable of supplying 2 x 0 AWG power cables for both GND and +12Vdc with at least the amplifier maximum current value and maximum output variation (Vripple) of 10%.
POWER SUPPLY Class D vehicle amplifier, Max Power 14.4v @ 2 Ohms 2700 WRMS, Max Power 14.4v @ 4 Ohms 1800 WRMS, Max Power 12.6v @ 2 Ohms 2000 WRMS, Max Power 12.6v @ 4 Ohms 1400 WRMS, Efficiency @ 4 Ohms 85%, Efficiency @ 2 Ohms 75%
MONO BASS AMPLIFIER INDICATORS Blue LED source and powered amplifier indicator, Red LED output distortion (clipping), Constant - output short circuit indicator, Yellow LED low voltage battery, Constant - Fuse blown or missing
POWER OUTPUT AND IMPEDANCE Input Voltage 9 to 15V, Input Impedance 100K Ohms, THD + Noise less than 1%, Input Sensitivity 230mV – 4V, Signal to Noise Ratio 86dB
SOUND SPECIALIZATION This high-powered Power Amplifier is cutting edge technology at its finest. RCA connectors ensure a secure connection between amplifier and speakers that allow distortion-free sound
OTHER TECHNICAL SPECS Recommended Fuse 100A, Current at Rest 2A, Max Current (Sinusoidal) 235A, Max Current (Musical) 115 A, PWR cables (min. Recommended) 21mm / 4 AWG, Output Cables (min. Recommended) 2x4mm/2x11AWG, Size 9.6’’ x 8.2’’ x 2.1’’
