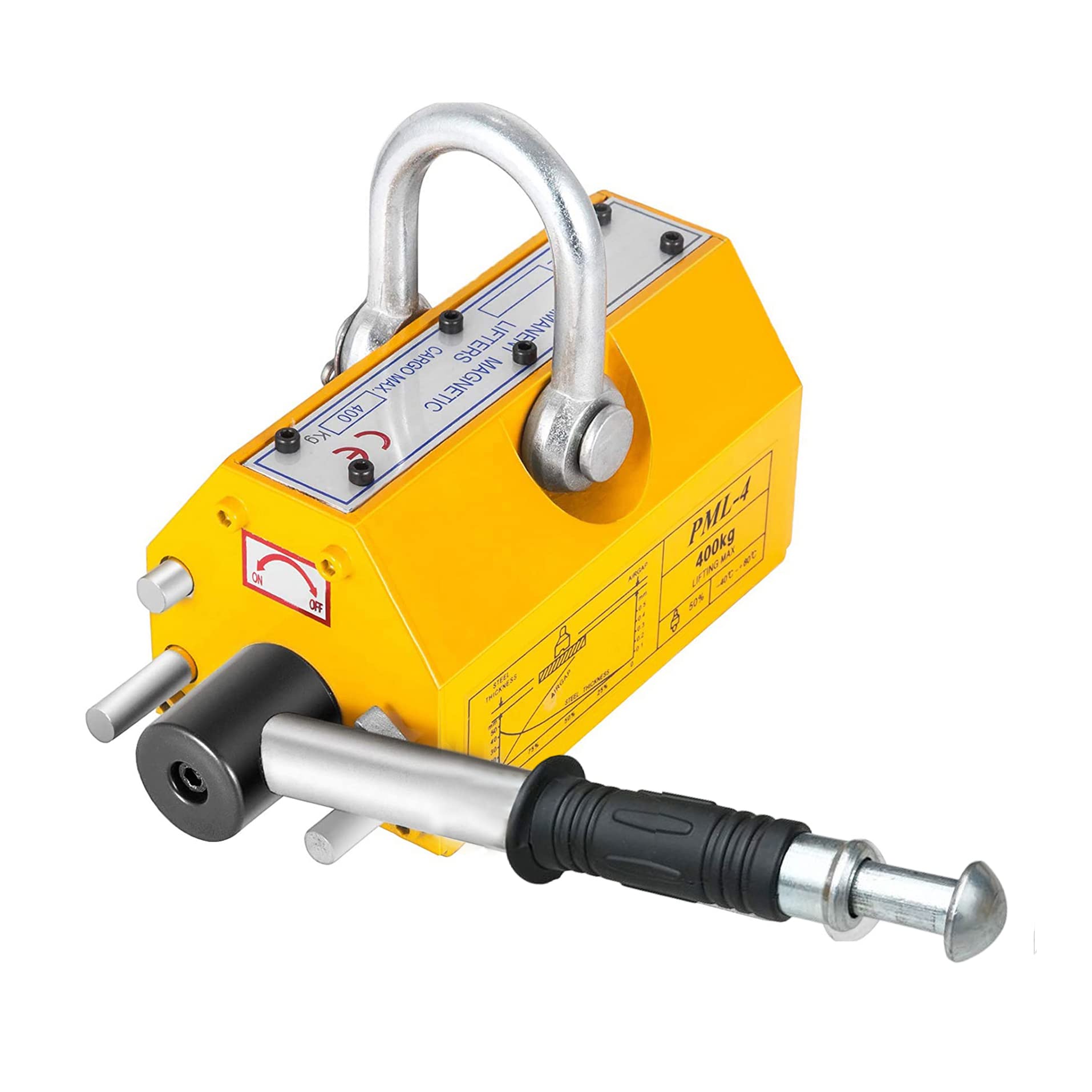

880LB Lifting Magnet Wide application: It is an excellent tool for electricity, engineering, transportation, and mining world is used for lifting steel sheet, block, rod, cylindrical, and other magnetic material. Notice: The lifting capacity of a product is directly related to the flatness, thickness, material, length, and width of the lifted object: The manual magnet crane is strict with steel plate thickness when lifting. For this 880lb type to get full of magnetism, the Min thickness of the iron plate should be 20mm/0.79in. The Max safe length is 1m/3.28ft.It applies to ordinary iron plate, not special alloy steel, etc. The more elements such as chromium and nickel are contained, the weaker the lifting capacity.When lifting cylindrical workpiece, the V-groove should keep two straight lines contact with the workpiece, so its lifting force is only 30% - 50% of the rated lifting force.Before lifting, clean the surface of the lifted object, and clean up the rust skin and protruding. The rougher the contact surface, the weaker the lifting capacity.The temperature of the workpiece to be lifted and the ambient temperature shall not be greater than 80℃. Please ensure that there is no severe vibration and impact. INTSUPERMAI Steel Magnetic Lifter Parameters Maximum Lifting Capacity: 880 LB/400 KGOperating Temperature: =5MMColor: Yellow (The surface of V-groove is coated with protective oil) Main Fuatures of the Lifting Magnet Widened and thickened magnetic material with strong adsorption capacity.Integrated shaping, using advanced paint baking technology, can effectively protect products. Different load-bearing products available, size and weight are also different. Please confirm it before the payment. More Detaisl of the Lifting Magnet Galvanized Lifting Ring It is made of alloy steel and galvanized with high strength, more durable, not easy to deform, break and not easy to rust. Safety Lock & Shaft The rotating shaft is flexible and easy to control.Equipped with safety bolt, convenient to fix handle, improve work efficiency and better safety. Clear Indication Signs It has clear plate thickness and lifting relationship diagram on its side, more convenient and safe. Anti-skid Handle Alloy steel operating rod with anti-slip handle, comfortable and convenient to use.Turn left to open magnetic force, turn right to close suction.
1.【Strong suction】This steel magnetic lifter has a strong load capacity the Max. Lifting Capacity 400 KG/880 LB; It uses the complete big magnet and the advanced magnetic system, the magnetic force is very strong. Operating Temperature < =80℃
2.【V-groove design】 The bottom of the lifting magnet is designed with widened and enlarged "V" groove, which can lift round steel and flat material. The application object is more extensive.
3.【Galvanized lifting ring】The ring of the permanent lift magnet is made of alloy steel and galvanized with high strength. It is more durable, not easy to deform, not easy to break and not easy to rust. The outer layer of the machine is baking paint design, which is waterproof.
4.【Upgrade the rotating shaft】Its rotating shaft is made of thickened material. It can rotate 180 degrees, it can rotate flexibly, which is convenient to improve work efficiency and safety.
5.【Clear indication signs】Clear operation mark makes the operation easier. There are on and off signs beside the rotating shaft; Also, there is a clear relationship diagram between plate thickness and lifting capacity on the side of theLifting Magnet, which is convenient to check at any time and make it more convenient for customers to use.
