HQUA-OWS-6 UV Water Purifier System - 6GPM Under Sink Ultraviolet Filter for Kitchen, 110V 25W with Extra UV Tube | Removes Bacteria & Viruses | Perfect for Home, RV, and Camping Water Purification

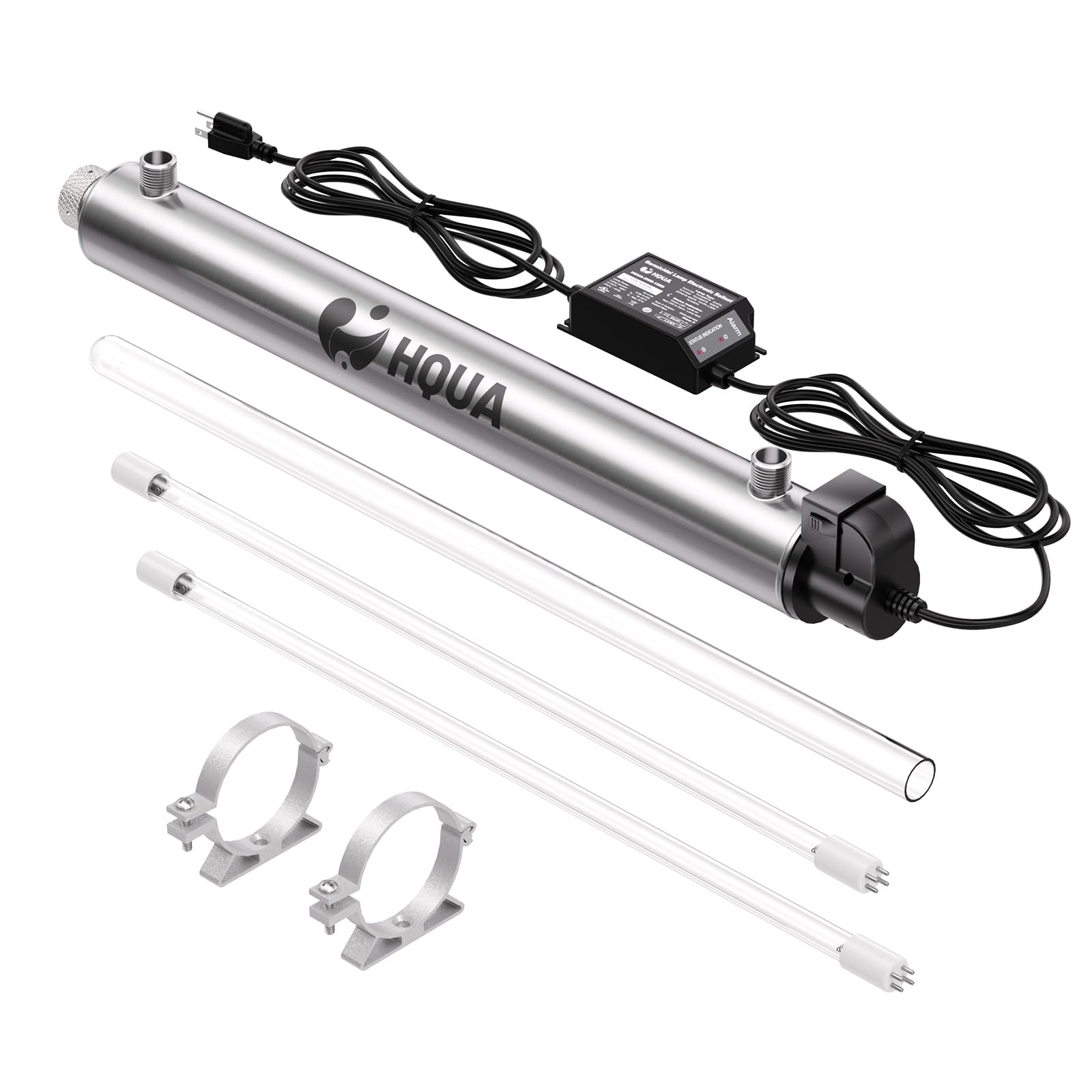

How it works? The ultraviolet (UV) treatment process is an extremely quick physical process. Ultraviolet light mutates and/or degrades DNA. When the DNA is damaged, the microorganism becomes unable to function because its “instructions” are garbled or missing. A microorganism that has no instructions cannot function and reproduce. It will be rendered harmless and eventually dies. In the UV purification process, water is purified as it runs through a stainless steel chamber (also called a “reactor”) that contains a special UV- producing lamp. As the water flows past the lamp, the microorganism in the water receive an effective dose of UV, preventing them from reproducing. HQUA UV Water Purifier is a water treatment device that needs to be assembled, but it’s easy to finish. Each part of it have its own function, we will introduce them hereby: Main Components Of The HQUA UV Water Purifier. UV Reactor Chamber Part Number: OWS-6C The UV chamber is made by 304 stainless steel, which was widely used in food industry, medical, considered to be stable and durable. Length-22.8 inch, diameter-2.5 inch, inlet/outlet 1/2”, no requirement of the water flow direction. UV lamp & Quartz sleeve Quartz sleeve (Part Number: HQUA-OWS-6Q) not only provide an interspace for the UV lamp, but also ensure high transmittance (90%) for the UV light. UV lamp (Part Number: HQUA-OWS-6L, GPH565T5L standard 4-pin) provide enough UV light to destroy the DNA of the microorganism. Electronic Ballast Electronic ballast (Part Number: HQUA-OWS-455EB) connect the UV lamp and the power (120V/60Hz), work as a controller in the system with 3.2 ft. (100cm) power cord and 3ft. (90cm) lamp cord. Green light on ‘work’ means everything alright, red light blinks on ‘fault’ and the controller beeps when the system is failed. Go Green and Satey Green and safe purification treatment. Lack of chemicals means no harmful chemical byproducts are going back into the nature. And it avoid the potential threat residual chlorine, the taste of your water is not affected in any way as well. Effective Purification HQUA water purifier ensures a 99.99% reduction of microorganism in the water. The corresponding UV exposure is 30 mJ/cm². A slower flow rate, a higher wattage device or two purifiers might be effective to handle a strong microorganism contamination problem. Installation and Maintenance Easy installation and maintenance. No need for chemical supplement, the equipment is intended to be installed in the pipe system permanently. the lamp needs to be replaced annually and the quartz sleeve should be cleaned every 6-12 months, replace every 2 years. Complete Technical Description Please CHECK YOUR BOOKLET in the package before you handle this system. We have a complete instruction manual that contains many detailed description of the unit that will help you a lot. NOTICE: Pre-treatment: Water quality is extremely important for the optimum performance of your UV system. The following levels are recommended : Iron 75% Hot Water Warning The water in the chamber of this equipment can be very hot (Approx. 140 °F) during an extended periods of no water flowing. It would not be a problem if the pipe system is long enough to disperse the heat. But if it happens,it is recommended to purchase a temperature control valve if this is an annoying problem for you. If you need a system for HQUA-OWS-6, please search “B09QKP6NB8” or “HQUA WS-DV02” on Amazon. Maintenance UV lamp: Replace the UV lamp annually (or biennially if seasonal home use) to ensure maximum purification.Quartz Sleeve: Clean the quartz sleeve every 6-12 months, replace every 24 months. The coating on the quartz sleeve will slowly form due to the minerals in the water. This coating must be removed because it reduces the amount of UV light reaching the water, thereby reducing purification performance. If the sleeve can not be cleaned, it must be replaced.Please search "B06XG19Q2Y""B07HQMWG1Y" for the replacement quartz sleeve and "B07NXWM9T5" "B07HQKKZ9Y" for the UV bulb. HQUA-OWS-12 12GPM 40W Whole House UV Water Purification System HQUA-OWS-6 6GM 25W Kitchen Undersink UV Water Purification System HQUA-TWS-12 12GPM 55W Whole House UV Water Purification System HQUA-OWS-12T 12GPM 40W Whole House UV Water Purification System HQUA-OWS-124 12GPM 40W Whole House UV Water Purification System Add to Cart Add to Cart Add to Cart Buying Options Add to Cart Customer Reviews 4.4 out of 5 stars 1,028 4.3 out of 5 stars 310 4.5 out of 5 stars 445 4.5 out of 5 stars 96 4.1 out of 5 stars 128 Price $189.99$189.99 $134.99$134.99 $239.99$239.99 — no data $259.99$259.99 Vertical/Horizontal Installation ✓ ✓ ✓ ✓ ✓ Flow Rate 12GPM 6GPM 12GPM 12GPM 12GPM Wattage 40W 25W 55W 40W 40W UV bulb Quantity/Part Number/ASIN 2/HQUA-OWS-12L/B07NXX83KM,B07HQ781CK 2/HQUA-OWS-6L/B07NXWM9T5,B07HQKKZ9Y 2/HQUA-TWS-12L/B07JF2CGWB,B07ZFDBKPB 3/HQUA-OWS-12L/B07NXX83KM,B07HQ781CK 3/HQUA-OWS-12L/B07NXX83KM,B07HQ781CK Quartz Sleeve Quantity/Part Number/ASIN 1/HQUA-OWS-12Q/B06XFX6Y4S,B07HQGW9XQ 1/HQUA-OWS-6Q/B06XG19Q2Y,B07HQMWG1Y 2/HQUA-TWS-12Q/B07JDRB6LH,B07ZFBPGQW 1/HQUA-OWS-12Q/B06XFX6Y4S,B07HQGW9XQ 2/HQUA-OWS-12Q/B06XFX6Y4S,B07HQGW9XQ Electronic Ballast HQUA-OWS-455EB/B071JXXFHK HQUA-OWS-455EB/B071JXXFHK HQUA-TWS-5595EB/B07JFGBQ1D HQUA-EBS51-425-40L/B0714HSSNH HQUA-OWS-455EB/B071JXXFHK O-ring B07Q5R3JHP B07Q5R3JHP B07Q5R3JHP B07Q5R3JHP B07Q5R3JHP Count-down Timer no data no data no data ✓ no data
